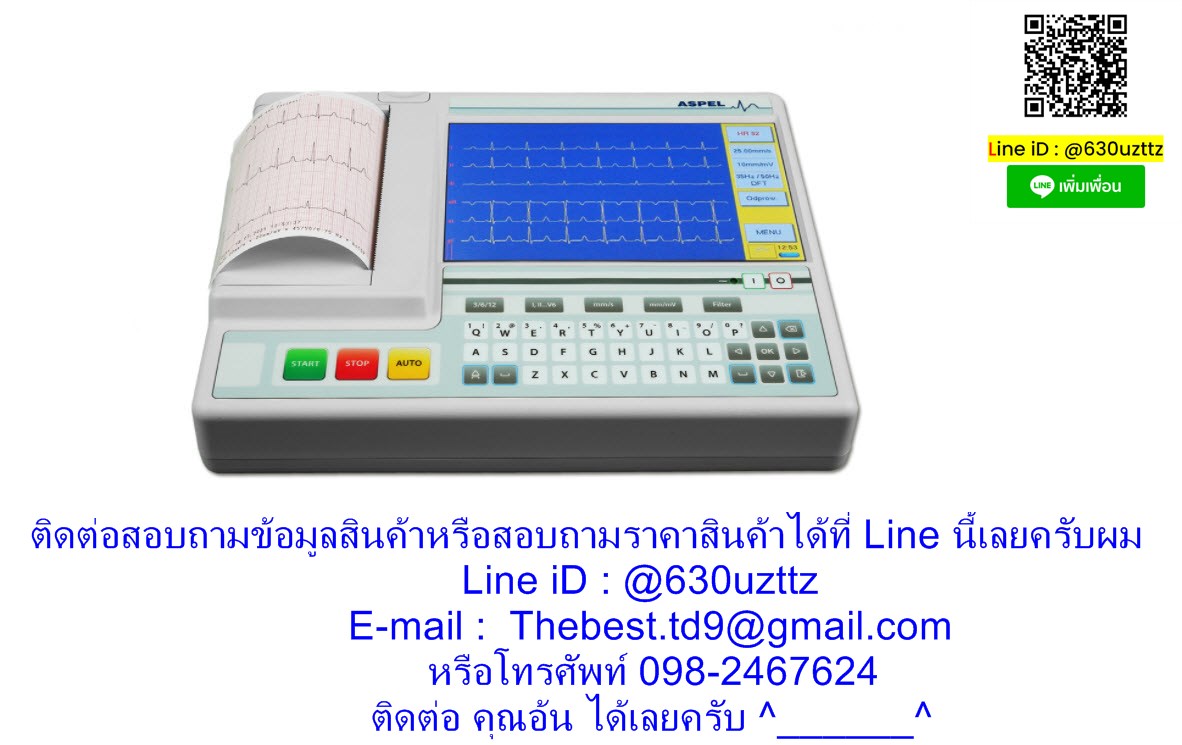

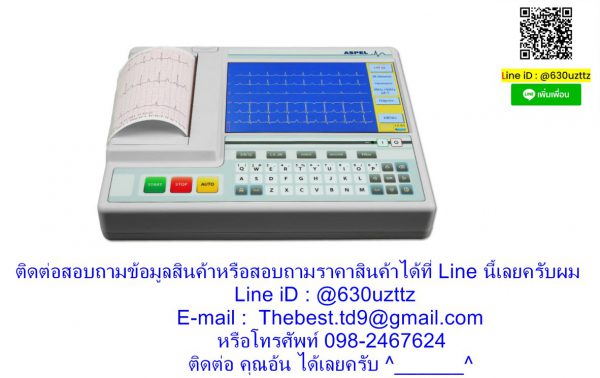

ASPEL ® – ASPEL ECG GREY v.07.225 (Electrocardiograph)


ติดต่อสอบถามข้อมูลสินค้าหรือสอบถามราคาสินค้าได้ที่ Line นี้เลยครับผม

Line iD : @630uzttz

E-mail :

 หรือโทรศัพท์ 098-2467624

 ติดต่อ คุณอ้น ได้เลยครับ ^ ^



Electrocardiograph ASPEL ECG GREY v.07.225 – is a 1, 3, 6, 12 channel ECG unit which enables to make electrocardiogram in full 12 leads. It is intended to conduct ECG examinations of adults and paediatric patients in all types of health care centres. ECG examination may be recorded in manual or automatic mode, with the possibility of analysis and interpretation. The device can be powered from 100 V ÷ 240 V mains supply or by an internal battery.

1. Visualisation of 1, 3, 6 or 12 ECG waveforms, analysis results and interpretations, examinations stored in memory.

2. Recording of 12 standard leads.

3. Print out in 1, 3, 6 or 12 ECG waveforms mode. Printing of a selected group:

o 1 channel – (I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6),

o 3 channels in standard format – (I-II-III, aVR-aVL-aVF, V1-V2-V3, V4-V5-V6),

o 3 channels in Cabrera format – (aVL-I-aVR, II-aVF-III, V1-V2-V3, V4-V5-V6),

o 6 channels in standard format – (I-II-III-aVR-aVL-aVF, V1-V2-V3-V4-V5-V6),

o 6 channels in Cabrera format – (aVL-I-aVR-II-aVF-III, V1-V2-V3-V4-V5-V6),

o 12 channels in standard format – (I-II-III-aVR-aVL-aVF-V1-V2-V3-V4-V5-V6),

o 12 channels in Cabrera format – (aVL-I-aVR-II-aVF-III-V1-V2-V3-V4-V5-V6).

4. Available types of examinations: manual, AUTO, SPIRO, automatic to clipboard, AUTOMANUAL, LONG (v.07.xx5).

5. Automatic record ECG signal from all 12 leads simultaneously, with save to temporary memory function, then depending on the settings: print out examination’s result, analysis, interpretation or save to database.

6. Adjustable length of automatic examination recording — interval of 6–30 seconds.

7. Reverse recording in automatic examination to clipboard and in manual examination (v.07.xx5).

8. Rhythm print out in AUTO examination and automatic examination to clipboard.

9. Definable stages of examination according to set up parameters in AUTOMANUAL examination.

10. Storing an examination in memory, 1–15 minutes in LONG mode (v.07.xx5).

11. ECG printed directly from the electrocardiograph using PCL5/6 printer.

12. Printout from database. Possibility to printout additional information about examination or patient.

13. Alpha-numerical soft-key keyboard with functional buttons.

14. Possibility to set parameters: speed, sensitive, intensity of printing.

15. Menu displayed on the screen for easy operation using touch panel.

16. Database of patients and examinations. Internal memory up to 1000 patients, 1000 examinations.

17. Viewing of the memory-stored examinations on display, with the possibility of changing the number of leads, augmentation and speed.

18. Automatic analysis and interpretation in compliance with EN 60601-2-51 (CSE database) – Analysis and interpretation dependable on age & sex of a patient.

19. Up to 130 automatic examinations in battery mode.

20. Continuous heart rate (HR) measurement and display.

21. Adapted to direct operation on an open heart.

22. Device allows to enable and disable the following filters:

o power line interference filter; filters available: 50 Hz, 60 Hz,

o muscle interference filter; filters available: 25 Hz, 35 Hz, 45 Hz,

o contour line filters; filters available: 0.15 Hz, 0.45 Hz, 0.75 Hz, 1.5 Hz,

o the low-pass filter (v.07.224, v.07.324, v.07.225, v.07.325): 75 Hz, 100 Hz, 125 Hz, 150 Hz,

o the auto-adaptive filter (v.07.224, v.07.324, v.07.225, v.07.325).

23. Detection of electrode detachment, independent for each channel (INOP control).

24. Detection of cardiac stimulator.

25. Sound signalling of detected stimulations of heart stimulator.

26. Protection against defibrillation pulse.

27. ECG recordings optionally saved on PenDrive, send on email or to other AsCARD via EKG-MAIL.

28. Wireless communication with the LAN or the Internet (v.07.3xx).

29. Wired communication with the LAN or the Internet.

30. Cooperation with CardioTEKA and CardioTEL.

31. Possibility of accepting orders for examination and sending back the results in HL7 standard via Internet (v.07.3xx).

32. Possibility of conducting preliminary spirometry examinations by using SPIRO-31 attachment.

33. EMR – keep performed examinations in specified period of time on external data storage (USB memory).


1. Limb electrodes, 4 pieces (EKK type).

2. Chest electrodes, 6 pieces (EPP type).

3. KEKG 30R ECG cable.

4. Main cable.

5. R-A4 paper, 112 mm wide (1 reel).

6. ECG gel.

7. Operation manual.
