vergery is a veterinary High Frequency electrosurgical equipment which is suitable for precision monopolar and bipolar surgery and micro-surgery without tissue alterations.
vergery can supply HF operative powers either for programmable time as short as hundreds of a second.
vergery through its performances allows pure CUT, cut-coagulation BLEND, incision with reduced production of eschar ENHANCED, superficial coagulation FORCED COAG, deep coagulation in absence of necrosis SOFT COAG, bipolar CUT and COAG.
The digital reading of the delivered power and the overseeing through microcontroller of the operational functions, assure the absolute reliability of the conditions of work.
vergery allows a highly professional surgery thanks to the user-friendly and safety solutions normally used.
The connection of neutral electrode is constantly monitored. Safety control of patient/plate contact using split neutral electrode. The possibility to control by the handle the output functions as well as the delivery of output power, allows to implement the surgical operation without turning away the surgeon attention from the surgical field.

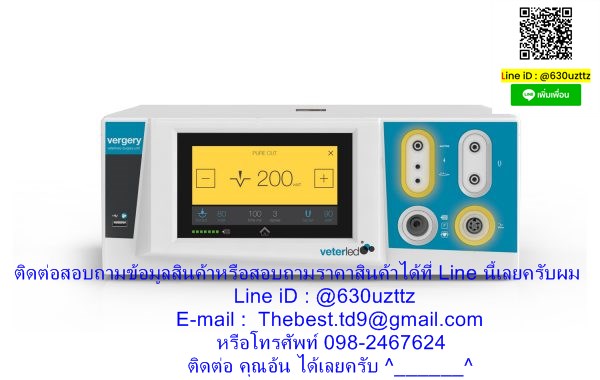

vergery has a 7”inches touchscreen display with an intuitive interface.
Max output power CUT 200 W-300 Ω
Max output power BLEND 150 W-300 Ω
Max output power ENHANCED 150 W-300 Ω
Max output power FORCED COAG 150 W-800 Ω
Max output power SOFT COAG 100 W-200 Ω
Max output power SPRAY COAG 100 W-1000 Ω
Max output power BIPOLAR CUT 100 W-50 Ω
Max output power BIPOLAR COAG 100 W-50 Ω
Max output power VESSEL SEALING 200 W-25 Ω
Working frequency 360 kHz
RF power pulse emission time 10 ms – 30 sec
RF power pulse interval 1 – 30
Patient circuit F
Selectable input voltage 115 – 230 Vac
Mains frequency 50 – 60 Hz
Electrical input power 500 VA
Patient/Plate circuit monitoring
Output power monitoring
Self check control
Electrical Class: I CF
